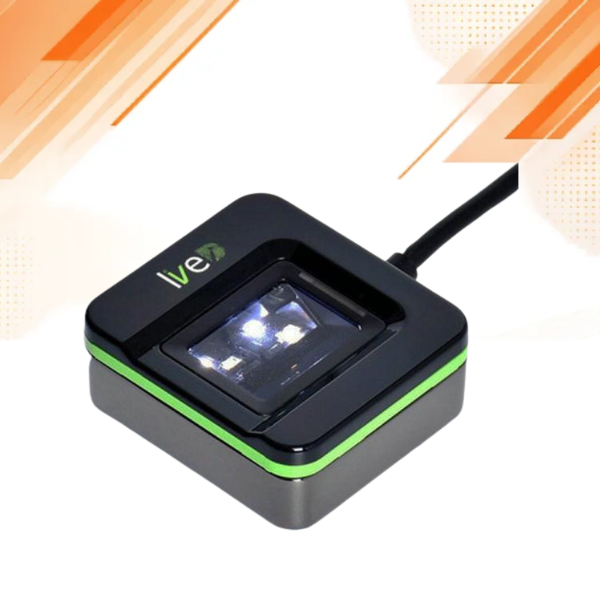

ZKTeco Live20R High-Performance USB Fingerprint Reader – Multi-OS Support
ZKTeco Live20R High-Performance USB Fingerprint Reader – Multi-OS Support
Couldn't load pickup availability
ZKTeco Live20R High-Performance USB Fingerprint Reader – Multi-OS Support
Upgrade your biometric enrollment and verification setup with the ZKTeco Live20R, a high-precision optical fingerprint scanner built for fast, accurate captures across virtually any operating environment. Whether you're deploying attendance systems, access control, or identity verification for a growing business, the Live20R delivers dependable performance in a compact, solid-steel housing that holds up to daily use.
Built for real-world conditions:
Unlike basic sensors that struggle with anything less than a perfectly clean, dry finger, the Live20R is engineered to handle dry, wet, and rough fingerprints alike. Its advanced recognition engine also rejects faint, fake, or unclear prints, adding a genuine layer of security rather than just convenience. A 360° rotation tolerance means users don't need to carefully align their finger for a successful scan — helpful in busy offices or retail counters where speed matters.
True cross-platform flexibility:
This is where the Live20R stands apart — it works seamlessly across Windows, Linux, Android, and iOS, making it a practical choice whether your attendance or verification software runs on a desktop, a tablet at the front desk, or a custom mobile app.
Development-friendly:
For businesses building custom biometric solutions, the Live20R ships with a free SDK supporting multiple programming languages, making integration straightforward for developers.
Reliable in demanding environments:
Rated for operation between -20°C and 50°C and up to 90% humidity, this scanner is built to perform consistently whether it's sitting on an air-conditioned office desk or a warehouse floor.
2. Specification Table
| Spec | Detail |
|---|---|
| Brand | ZKTeco |
| Model | Live20R |

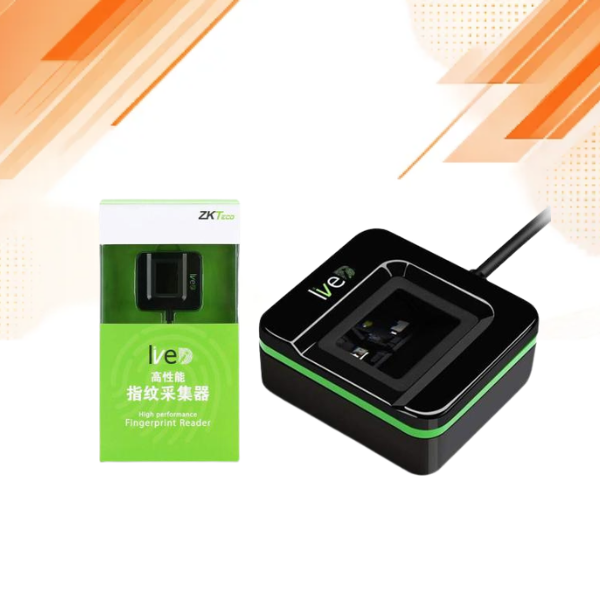

| Sensor Type | Optical sensor with film enhancement |
| Resolution | 500 DPI, 256 grayscale (8-bit) |
| Scan Area | 15.24mm x 20.32mm (FAP20 standard) |
| Image Size | 300 x 400 pixels |
| Interface | USB 1.1 (backward compatible with USB 1.0/2.0) |
| Scan Speed | Under 0.5 seconds |
| Rotation Angle | 360° |
| Operating Temperature | -20°C to 50°C |
| Operating Humidity | 0–90% |
| Operating Systems | Windows (XP/Vista/7/8/10), Linux (32/64-bit), Android, iOS |

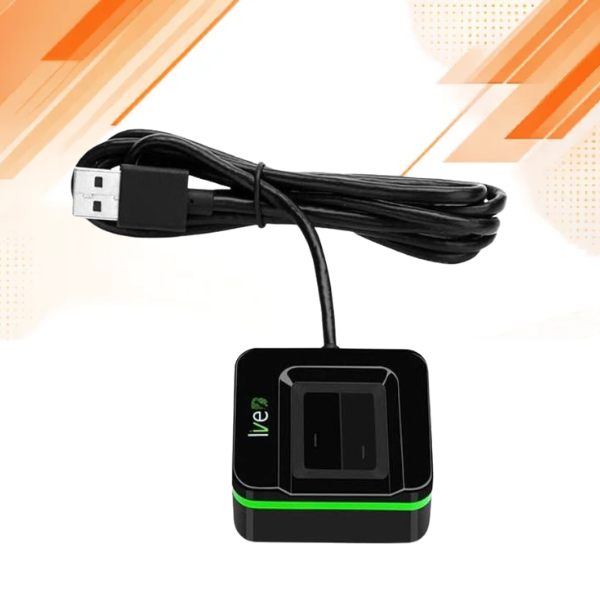

| USB Cable Length | 180 cm |
| Power Supply | 5V ±0.25V via USB |
| Current Draw (Capture) | Max 250mA |
| Current Draw (Idle) | Max 25mA |
| Current Draw (Suspend) | Under 0.5mA |
| Device Dimensions | 124.5mm x 102mm x 34mm |
| Sensor Dimensions | 49mm x 49mm x 18mm |
| SDK Support | Free SDK; supports C++, VB, Delphi, and other languages |
Applications / Use-Case List
- Employee attendance and time-tracking systems
- Access control for offices and secure facilities
- Fingerprint-based data encryption
- Embedded biometric applications
- Public and social security verification systems
- Security monitoring setups
