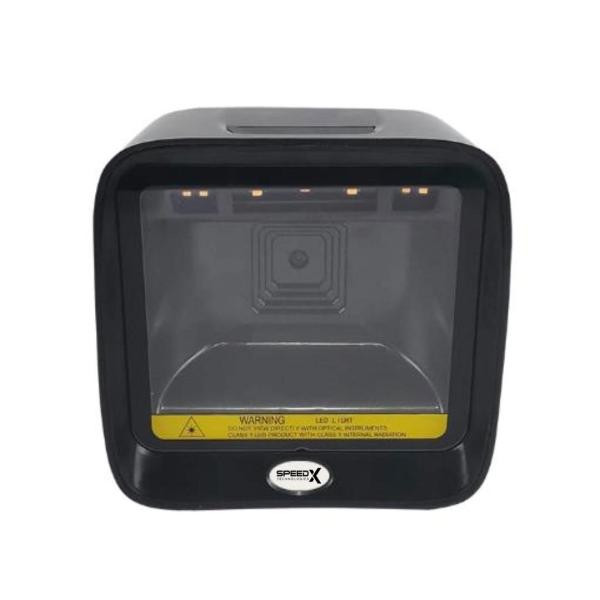

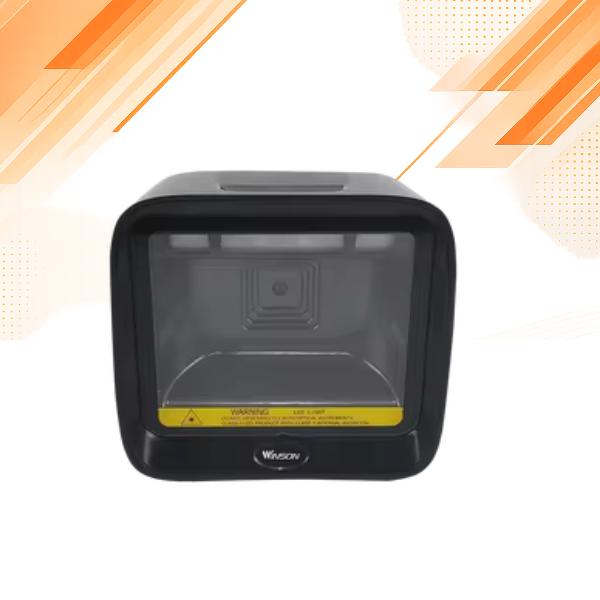

Speed-X 9700 2D CMOS Desktop Barcode Scanner – Auto-Sense Hands-Free Barcode Reader

Speed-X 9700 2D CMOS Desktop Barcode Scanner | Ultra-Fast Auto-Sense Hands-Free Scanner

The Speed-X 9700 2D CMOS Desktop Barcode Scanner is a premium hands-free barcode reader built for businesses that demand the highest levels of speed, accuracy, and reliability. Powered by a 32-bit processor, a high-resolution 1280×800 CMOS sensor, and an intelligent auto-sense scanning engine, the 9700 reads all major 1D and 2D barcodes instantly — from printed labels and product packaging to mobile payment QR codes and digital e-tickets. With a massive 0–450mm depth of field and a wide ±360° roll angle, it delivers effortless, precise scanning in virtually any orientation. Ideal for supermarkets, retail stores, pharmacies, warehouses, logistics hubs, and healthcare counters across Pakistan.

Key Features

Auto-Sense Hands-Free Scanning
The intelligent auto-sense mode detects barcodes automatically the moment they enter the scan zone — no button press needed. Perfect for high-traffic counters where speed and convenience matter most.

High-Resolution 1280×800 CMOS Sensor
Superior imaging resolution ensures sharp, accurate decoding even on small, damaged, or low-contrast barcodes with a minimum resolution of 5 mil (0.127mm).

Exceptional Depth of Field — 0 to 450mm
One of the widest depth-of-field ranges in its class, the 9700 scans barcodes from direct contact all the way up to 45cm away — ideal for large items, awkward packaging, and screen-displayed codes.

Reads Barcodes on Any Surface or Screen
Accurately decodes barcodes from paper labels, product packaging, receipts, smartphones, tablets, and computer screens — supporting mobile payments, loyalty apps, digital coupons, and e-tickets.

Wide Scanning Angle Tolerance
With Roll ±360°, Pitch ±80°, and Skew ±70°, the 9700 reads barcodes presented at virtually any angle, reducing misreads and keeping checkout lines moving.

32-Bit Processing Engine
The onboard 32-bit CPU powers rapid, intelligent decoding across all supported barcode types with minimal latency, even in continuous scanning mode.

Dual LED Illumination System
Combines a Red LED aiming light (625±10nm) for precise targeting with 5600K white LEDs for optimal illumination — laser-free and completely safe for customers and staff.

Large Scan Window & Compact Design
The generously sized scan window captures barcodes quickly and effortlessly, while the sleek, compact body fits neatly on any POS counter or workstation.

Multi-Language & Multi-System Support
Compatible with multiple keyboard languages and operating systems, making it a versatile choice for diverse business environments.

Technical Specifications

Supported Barcode Formats
